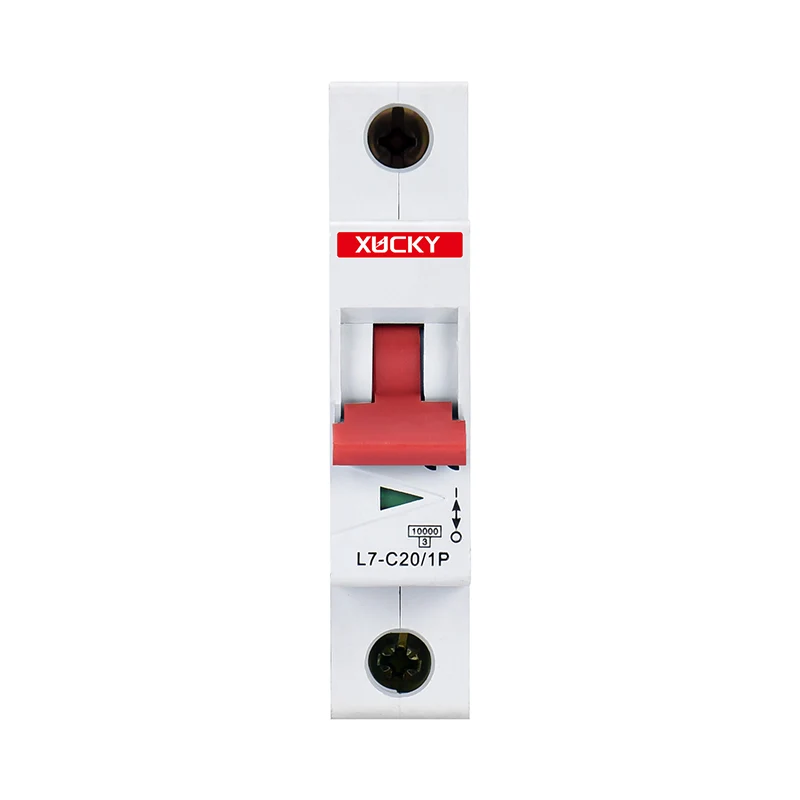

L7 miniatuurstroomonderbreker

Introductie van onze nieuwe miniatuurstroomonderbreker, de L7 van Xucky! Het komt in 1P, 2p, 3p, 4p polariteiten en voldoet aan IEC60898 - 1/GB/T10963.1 -normen. L7 miniatuurstroomonderbreker biedt overbelasting en korte circuitbescherming. Met CE, CB, certificeringen is het betrouwbaar. De nominale stroom varieert van 1A tot 63A en de nominale spanning is 230/240V (1P) en 400/415V (2p - 4p). Het heeft een hoog brekencapaciteit van 6/10KA, het ontstoken van schaal en kan overal worden geïnstalleerd. Met lange elektrische en mechanische levensduur is het een geweldige keuze voor verschillende toepassingen.

Stuur onderzoek

Productomschrijving

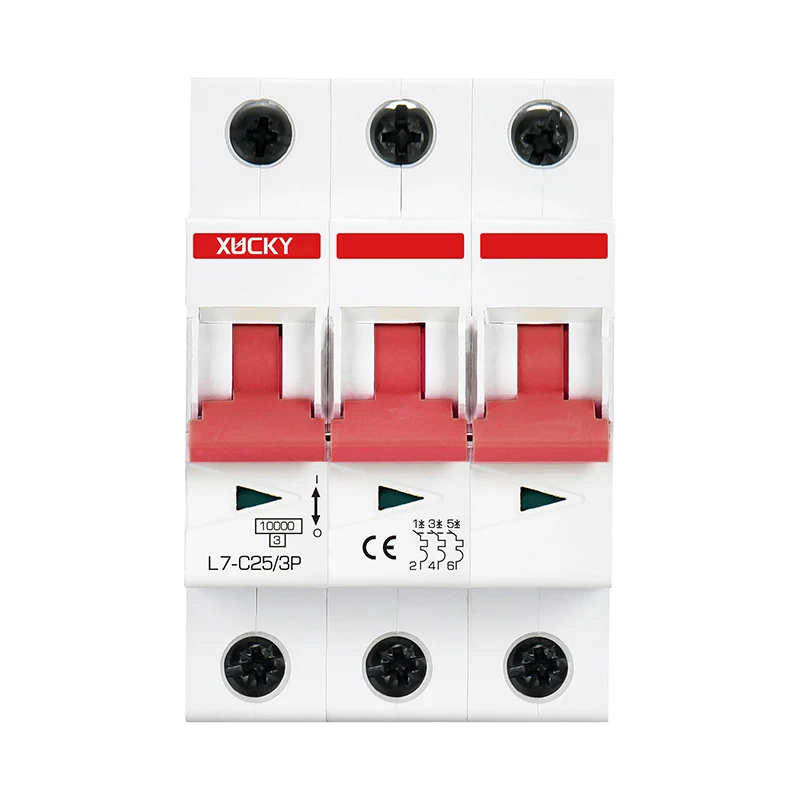

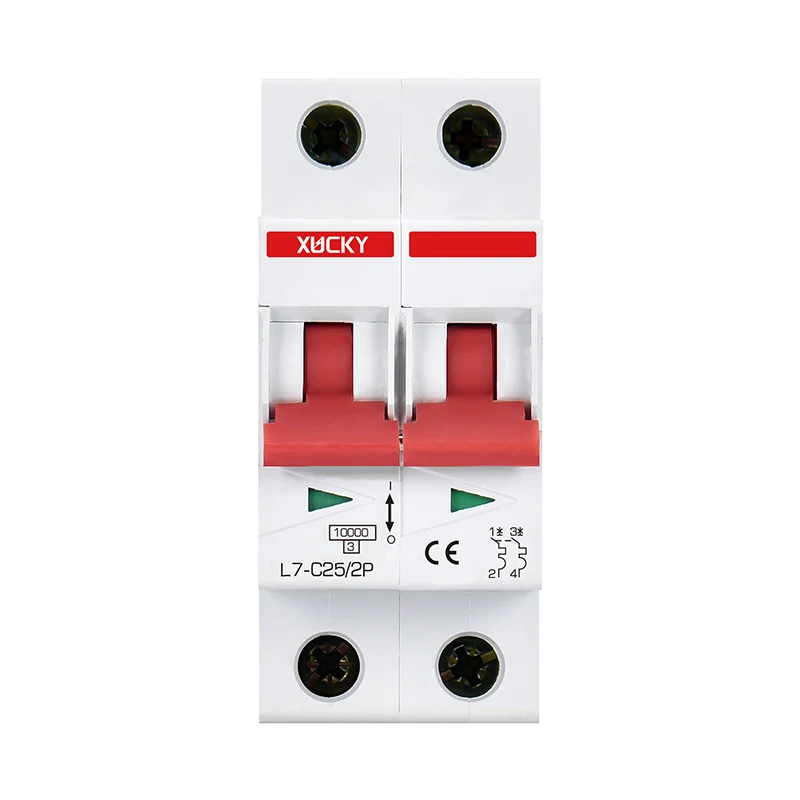

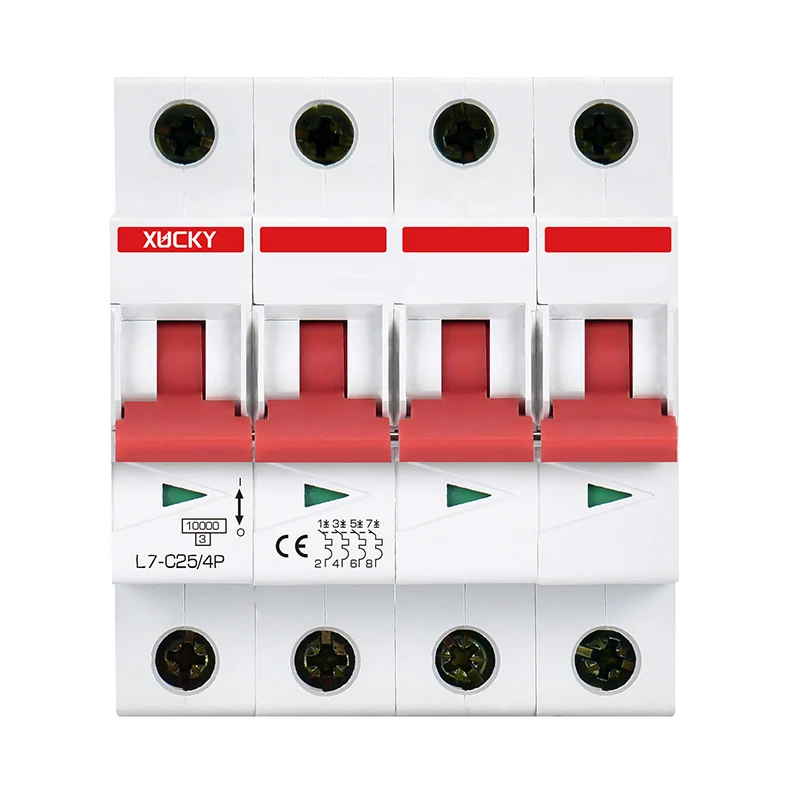

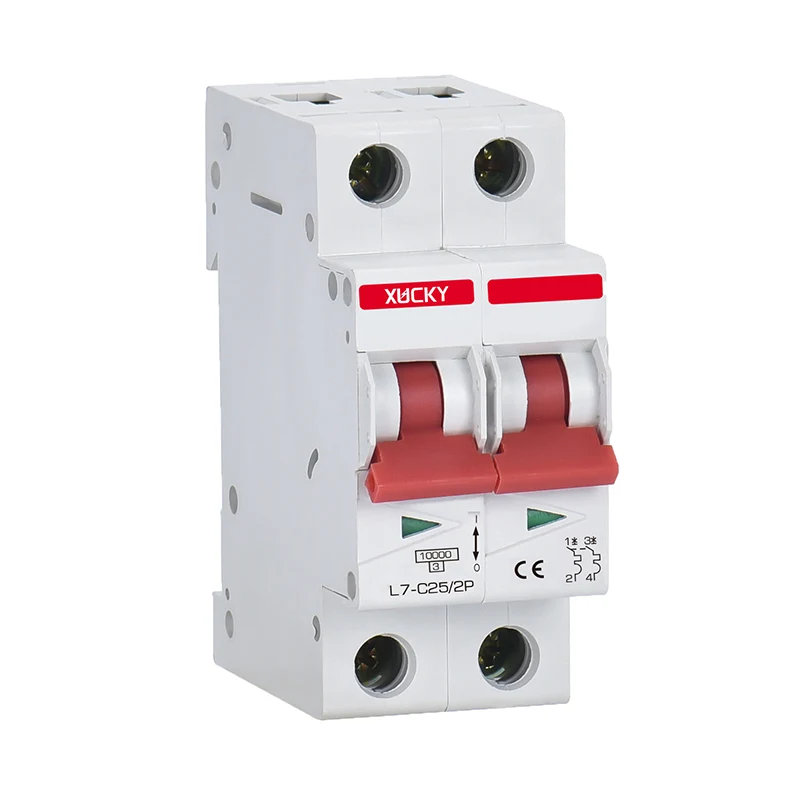

L7 Miniature Circuit Breaker

Introducing our new Miniature circuit breaker, the L7 from XUCKY! It comes in 1P, 2P, 3P, 4P polarities and complies with IEC60898 - 1/GB/T10963.1 standards. L7 miniature circuit breaker offers overload and short - circuit protection. With CE, CB,certifications, it's reliable. The rated current ranges from 1A to 63A, and the rated voltage is 230/240V (1P) and 400/415V (2P - 4P). It has a high breaking capacity of 6/10kA, inflaming shell, and can be installed anywhere. With long electrical and mechanical lifespans, it's a great choice for various applications.

Technical Specifications

● Polarity: 1P, 2P, 3P, 4P;

● Compliant with standards: IEC60898- 1/GB/T10963.1;

● Product Function: Overload and Short Circuit Protection;

● Certification: CE,CB,SAA;

● Rated current In (A):1,2,4, 6, 10, 16, 20, 25, 32, 40, 50, 63;

● Rated voltage Ue: 230/240V (1P),400/415V(2P ~ 4P);

● Rated frequency (Hz): 50/60;

● Rated insulation voltage: 500V;

● Rated impulse withstand voltage (impact) kU: 4;

● Rated breaking capacity Icn (kA): 6/10kA;

● Protection level: IP20;

● Electrical lifespan (times): 10,000;

● Mechanical lifespan (times): 30,000;

● Breaking ability:

● Flame retardant: V0 level;

● Installation location: Any location;

● Applicable wire cross-section; Solid wire (mm): 1-35; Twisted wire (mm2): 1-25;

● Maximum wiring torque (N . m): 3.5;

● Environmental temperature (C ): -25 to+45, maximum humidity of 95%;

● Storage temperature (C):- 40- +75;

● Energy limit level: 3;

● Installation altitude (meters): not exceeding 2000.

Features

● Quick closing: ensuring reliable operation of impact loads and extending the life of circuit breakers;

● There is a clear opening and closing indicator window below the handle;

● The printed information on the surface of the product is long-lasting, clear, and not easy to erase;

● The emission of ionized gases is subject to the strictest restrictions: 45mm grid distance;

● This L7 miniature circuit breaker complies with Type B of IEC 60898-1 standard, The characteristics of the C-type and D-type trip curves.

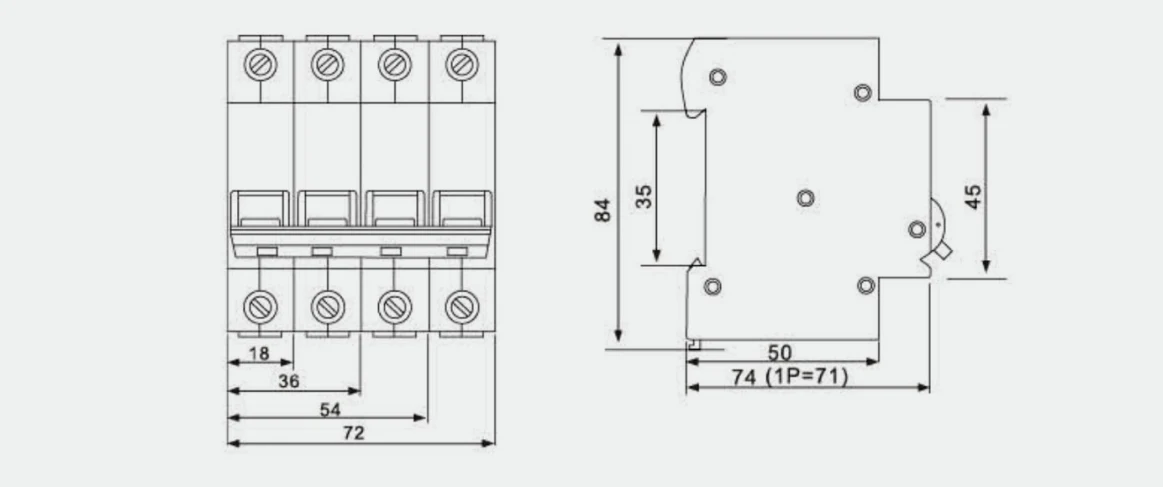

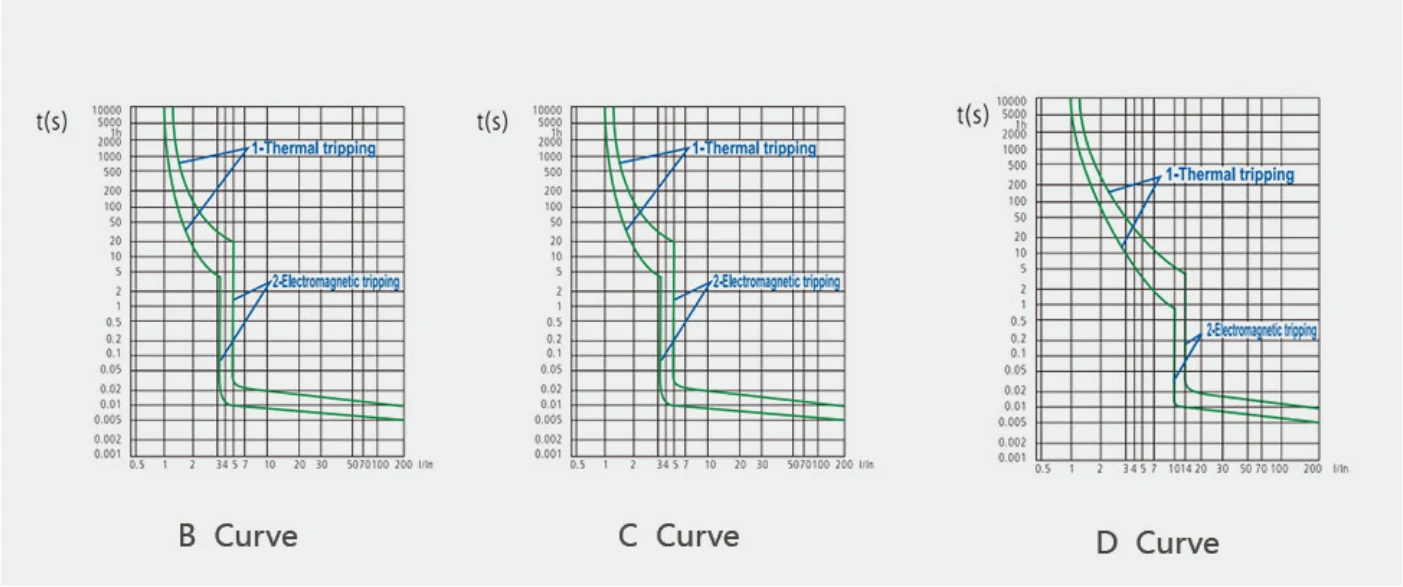

Tripping Characteristic Curves

IEC 60898-1

L7 Miniature Circuit Breaker

Magnetic Release

When a circuit short circuit occurs, instantaneous tripping is achieved by a magnet with an iron core. According to the 1EC60898 standard, this L7 miniature circuit breaker can be divided into three types: B, C, and D.

	Test current	Tripping time	Applications
B Curve	3ln 5ln	0.1<t<45s(In≦ 32A) 0.1<T<90s(In>32A)	Type B is only applicable to active loads: -Electric heater-Water heater-Electric furmace
C Curve	5In 10ln	0.1<t<15s(In≦ 32A) 0.1<T<30s(In>32A)t<0.1s	Type C is suitable for ordinary loads: -Lamp -Power socket -Small power motor
D Curve	10ln 20In	0.1<t<4s(In≦ 32A) 0.1<T<8s(ln>32A) t<0.1s	Control and protect circuits with instantaneous surge current (large motors)

Thermal Release

● Once overload occurs in the circuit, the bimetallic strip of the circuit breaker will bend due to heat, causing the contacts to disconnect and resulting in thermal tripping;

● The IEC standard defines the tripping time range for different overload currents;

● The reference test environment temperature is 30 °C.
